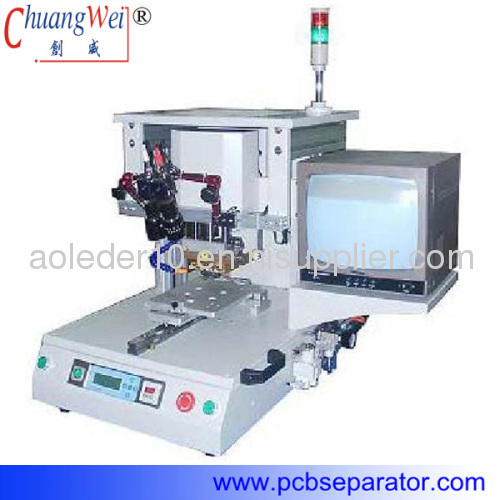

Chuangwei hot bar welding machine
1.use pulse heat with linear guide moving
2,apply to softto hard of TAB,TCP,ACAand FPC,FFC,PCB etc.



Chuangwei hot bar welding machine parameters :

Model	CWPP-1A
hot pressing temperature method	Pulse Heat
Max. Working Area	200mm X 260mm
Fixture	1 set
voltage	110V/220V
working air pressure	0.45-0.7Mpa
Temperature setting	20-500℃
Temperature precision	±2℃
hot-pressing time	1-99 s
force head pressure	0.1-0.6 MPa
welding monent processing power	2000W(moment)
Size	620mm X 690mm X 570mm
Weight	90Kg

Chuangwei hot bar welding machinedescription:

1.Closed Loop PID temperature control with visible LED display

2.LCD display programmable pressure switch for precise force control

3.Each heating cycle is triggered by a real time pressure sensor

4.Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined

5.Silicon rubber can be fitted in bonding Heat Seal Connectorsbetween LCD and PCB

6.Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation

7.Parts registration is adjusted by micrometer and secured by vacuum lock

8.Optional CCD system for fine pitch component
